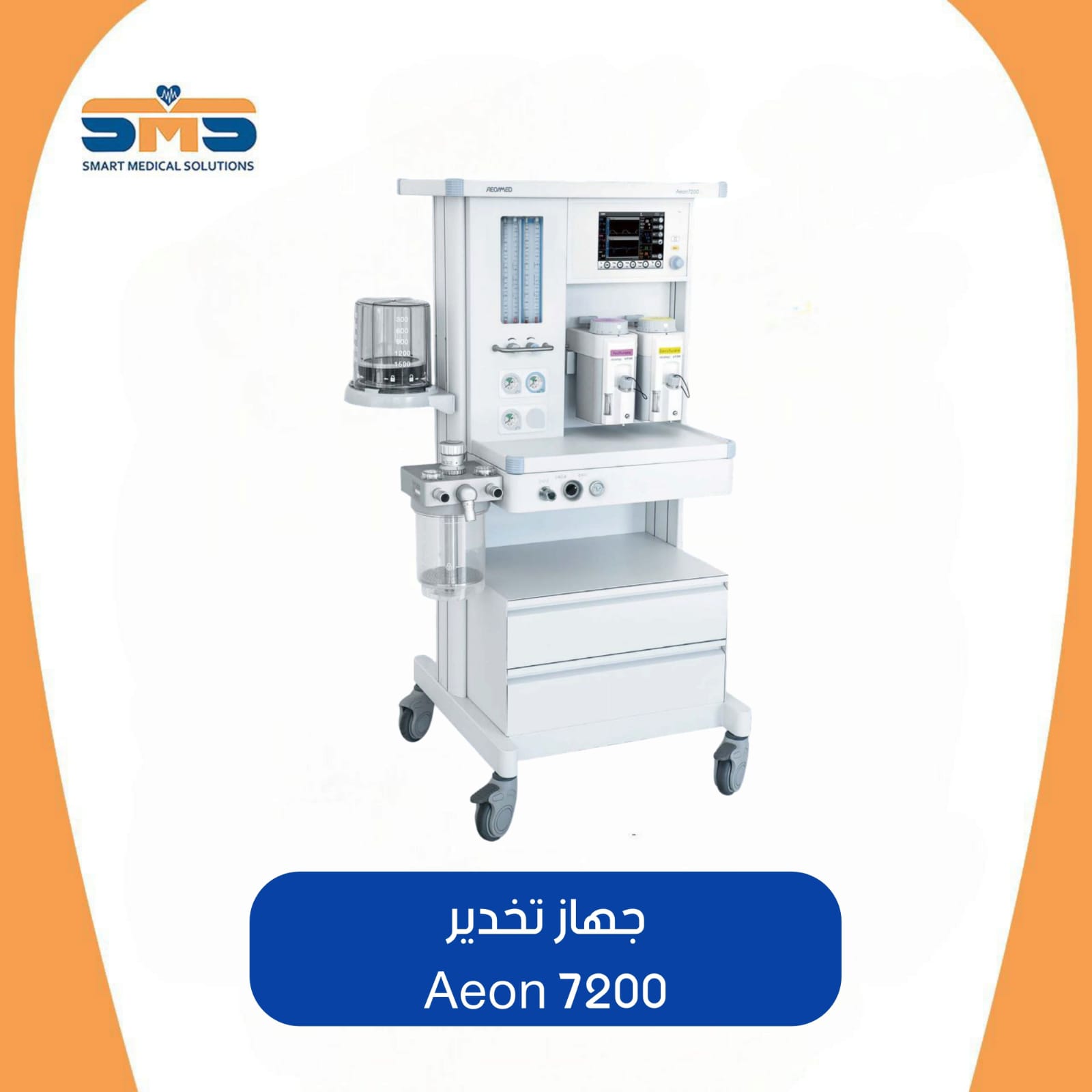

Aeon7200
• CE certified meets international safety standards and requirements
• 8.4“color touch screen with navigation knob for easy getting started
• Volume, Pressure and SIMV ventilation modes meet different application of anesthesia
• The built-in patented sensor with maintenance-free prevents moisture condensation, preventing damage and ensuring
accurate monitoring
• With 2 tubes for each gas, make it easy to operate during low/mini flow anesthesia
• Anesthetic gas monitoring (AGM) helps doctors conveniently control gas concentration
• Optional AGSS protects the device while reducing air pollution in OR
Technical Specifications
Physical & Environmental Specifications
• Dimensions(H×W×D): 1356×845×620 mm
• Weight: 110 kg (Basic unit)
• Storage temperature: -20~55℃
• Working temperature: 10~40℃
• Storage humidity: ≤93%
Electrical Specifications
• Mains: AC 100~240V, 50/60Hz
• Battery: DC 24V, ≥120min
• Power outlet: 3 on back (1.5A individual)
Ventilator Specifications
Electrical Specifications
• Mains: AC 100~240V, 50/60Hz
• Battery: DC 24V, ≥120min
• Power outlet: 3 on back (1.5A individual)
• Gas supply: 280~600kPa (40.6~87.1psi)
• Flowmeters: Double tube in series
• O2: 0~1L/min; 1~10L/min
• N2O: 0~1L/min; 1~10L/min
• Gas system: Oxygen supply failure alarm
Oxygen supply failure protection
• O2 flush: 25~75 L/min
• Breathing circuit: Closed, Semi-closed, Semi-open
• Driven mode: Pneumatically driven and
electronically controlled
• Safety valve: ≤10 kPa
• Operating mode: One key Man. /Vent. Switch
Ventilator Specifications
Electrical Specifications
• Mains: AC 100~240V, 50/60Hz
• Battery: DC 24V, ≥120min
• Power outlet: 3 on back (1.5A individual)
• Gas supply: 280~600kPa (40.6~87.1psi)
• Flowmeters: Double tube in series
• O2: 0~1L/min; 1~10L/min
• N2O: 0~1L/min; 1~10L/min
• Gas system: Oxygen supply failure alarm
Oxygen supply failure protection
• O2 flush: 25~75 L/min
• Breathing circuit: Closed, Semi-closed, Semi-open
• Driven mode: Pneumatically driven and
electronically controlled
• Safety valve: ≤10 kPa
• Operating mode: One key Man. /Vent. Switch
• TV: 20~1500ml (In VC)
• Frequency: 2~100bpm
• I:E: 4:1~1:8
• PEEP: 0~30 cmH2O, optional
• Inspiration pause: OFF, 5~60%Ti
• Flow trigger: 1~15L/min
• Pressure trigger: -20~0cmH2O
• Pressure range: 5~70 cmH2O
Monitoring display
• Display: 8.4″ color touchscreen
• Pressure: Ppeak, Pplat, Pmean, PEEP
• Volumes: MV, Vt
• Breath rate
• Compliance
• Gas: O2, CO2, Agent (all optional)
• Graph display: P-t, F-t waveforms
• Alarm: High/Low Airway Pressure
High/Low Mnuit Volume
High/Low FiO2 (Equipped O2 monitoring)
Power failure
O2 supply failure
Apnea…
• Alarm Silence: ≤120 seconds
Vaporizer
• Supports 2 vaporizers (Selectatec®
with interlock, optional
standby vaporizer parking holder )
• Agent type: Halothane, Enflurane, Isoflurane, Sevoflurane
• Filling type: Pour-fill, Key-fill, Quik-fil
