Specifications

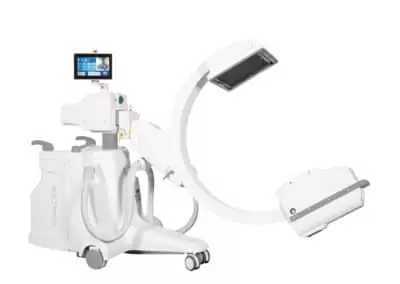

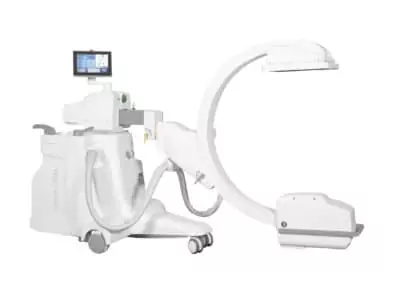

Xenox C400
- Horizontal run: manual 210 mm; E-motion 175 mm
- Motorized Vertical run: 500 mm; 500 mm
- C-Arm lateral Rotation: ± 140° (± 180° *); + 180°; – 90° (-180° manual)

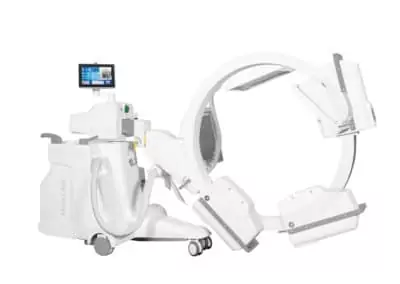

- C-Arm orbital Movement: 150° (105°, -45°); 150° (105°, -45°)
- WIG-WAG: ± 10°; ± 10°
- Useful space: 810 mm; 810 mm
- C-Arm Depth: 640 mm; 640 mm
- Min/ Max Height: 1455 / 1955 mm; 1455 / 1955 mm
- Min/Max Length: 2085/ 2295 mm; 2110/ 2285 mm
- Max Width: 800 mm; 800 mm
- S.I.D.: 1065 mm; 1065 mm
*Measure obtained without security mechanical block operating modes and functionality operating modalities of (rtp) memory
- Continuous fluoroscopy
- High dose pulsed fluoroscopy
- Pulsed fluorography
- Digital snapshot
- Fluoroscopy ma : (range: 0,5-8 ma)
- Radiography: 2 points technique (kv and mas)
- Cine sequence: up to 25 fps. (Included in basic configuration) software base
- Funtion (live processing)
- Display of patient data, hospital name, x-ray parameters on operator monitor
- Recursive filter for noise reduction
- Dinamic Recursive Filter for patient’s movement compensation
- Edge enhancement spatial filter
- Edge enhancement spatial filter
- Horizontal and vertical image inversion
- Digital zoom during fluoroscopy mode (new) • Metal detection in manual or automatic mode (new)
- Continuous digital image rotation
- Adjustable contrast and brightness
- Adaptive gamma curve
- Continuous fluoroscopy modality with LIH (Last Image Hold)
- Low dose fluoroscopy
- Timer Function
- Measurements: length, angles, with manual calibration system, text overlay
- Anatomic program set up
- 80 anatomic programs in fluoroscope Post-Procesing Base Features:
- Last Image Hold (LIH)
- Last fluoroscopy Run Hold (LRH)
- Horizontal/Vertical image inversion
- Digital image rotation
- Grey scale image inversion
- Adjustable contrast and brightness
- Adjustable Gamma curve (LUT)
- Edge enhancement
- Electronic shutters (Rectangular and circular)
- Electronic Zoom Roam from 1x to 5x
- Electronic mobile lens
- Mosaic Overview
- Patient’s selection for exams and images management
- Patient’s exams transfer in the DICOM system
